How To Configure WebRTC
Required Packages
scopserv-telephony25-7.87.0.0.20260112
scopserv-server-7.10.0.0.20251211
Pre-requisites
Asterisk must be configured to use the pjsip channel driver.
The transport on each extension must use Automatic
Encryption must be enabled using TLS (Let's Encrypt is supported).
See:
Asterisk must be running in pjsip mode
See:
Optional
If you have not already configured support for TLS encryption using Certificates and the Certificate Manager you can configure Let's Encrypt very quickly using bash.
Code:
service scopserv stop
php -q /var/www/scopserv/server/scripts/letsencrypt.php
/var/www/scopserv/telephony/scripts/commit
service scopserv start
Installing Asterisk 20
scopserv_yum install asterisk20 -y
/var/www/scopserv/telephony/scripts/commit
service asterisk restart
service scopserv_fastagi restart
Installing the CODEC's (open source versions)
Execute the installation scripts:
/var/www/scopserv/telephony25/scripts/install_g729.sh
=================================================================
G.729 and G.723.1 codecs (x86_64) Linux binaries for Asterisk
DISCLAIMER: You might have to pay royalty fees to the G.729/723.1
patent holders for using their algorithm.
=================================================================
[Press ENTER to continue or CTRL-C to cancel]
Asterisk 18
------------
Downloading codec_g729.so...
Downloading codec_g723.so...
Asterisk 20
------------
Downloading codec_g729.so...
Downloading codec_g723.so...
Restart Asterisk to enable G.729 and G.723.1 codecs!
/var/www/scopserv/telephony25/scripts/install_opus.sh
=================================================================
Opus codec (x86_64) Linux binaries for Asterisk
=================================================================
[Press ENTER to continue or CTRL-C to cancel]
Asterisk 18
------------
Downloading...
Installing...
Asterisk 20
------------
Downloading...
Installing...
Restart Asterisk to enable Opus codecs!
service asterisk restart

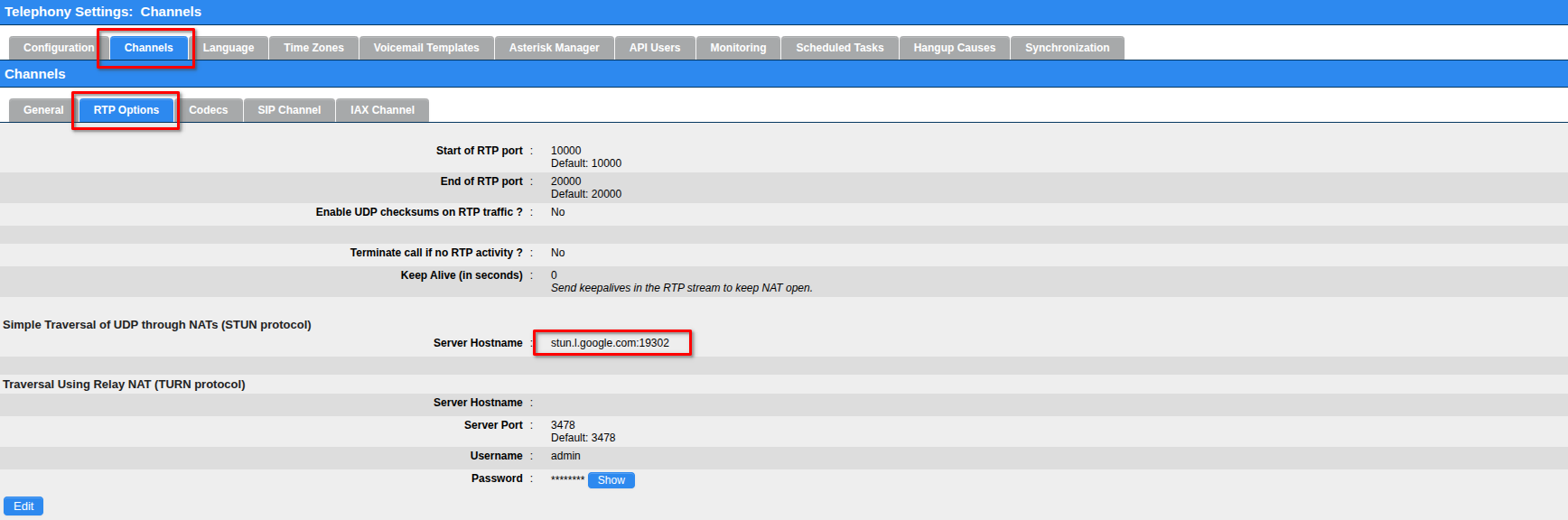

Configure the SIP channel to support STUN
In this example stun.l.google.com:19302

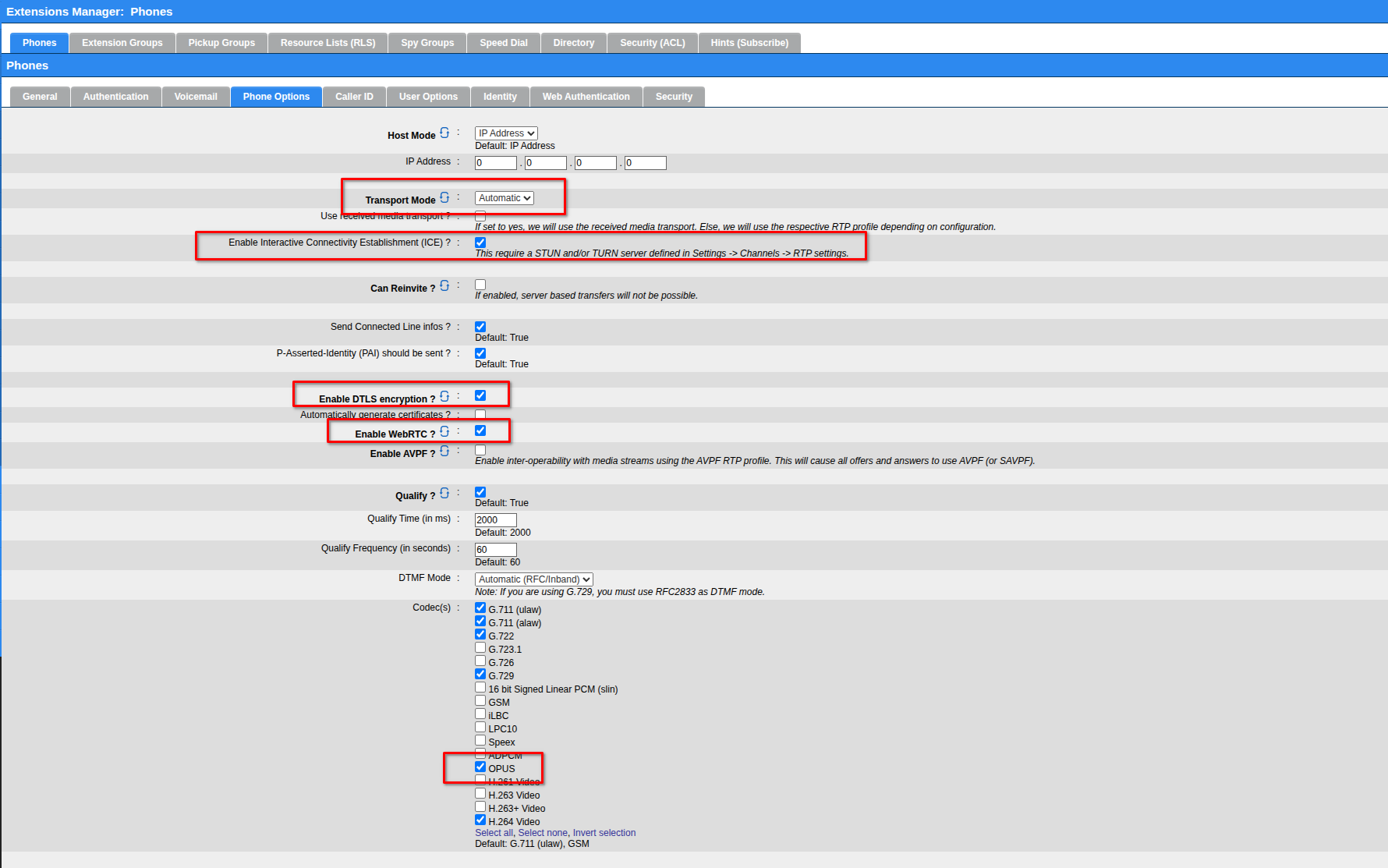

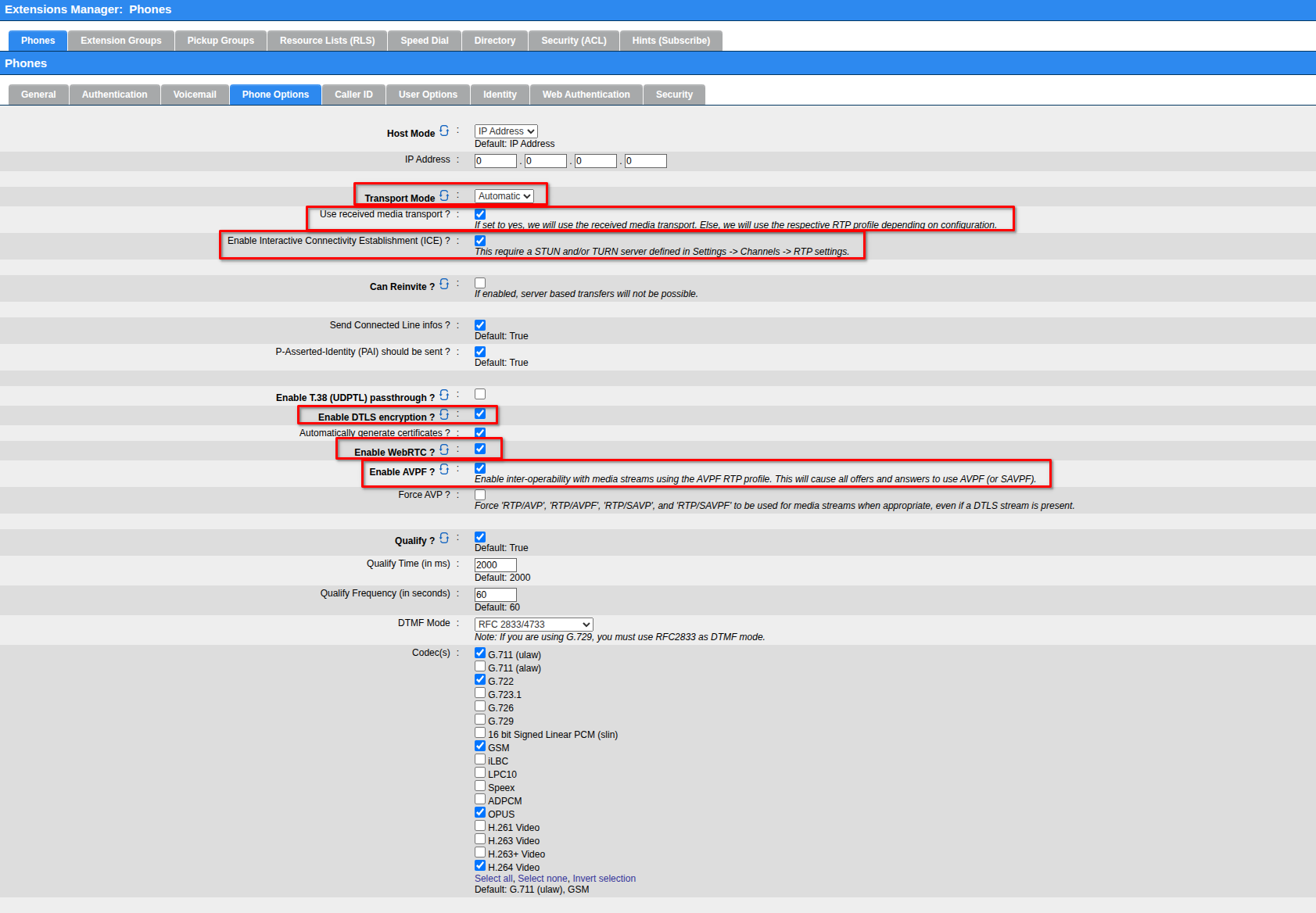

Configure the Extensions
These are the mandatory settings per extension.
Each User Agent negotiates its own transport based on its configuration!
This applies to all Shared Devices. They must each negotiate their own transport.
This ensures Shared Device connectivity and operation per User Agent.
Commit your changes
Ensure each Extension is configured as needed and Commit your telephony changes.
