How To Configure the ScopLINK-UPA
Required Packages
scopserv-telephony25-8.2.0.0.20261005
And matching dependencies
Pre-requisites
Asterisk must be configured to use the pjsip channel driver.
The transport on each extension must use Automatic
Encryption must be enabled using TLS (Let's Encrypt is supported).
See:
Asterisk must be running in pjsip mode
See:
Optional
If you have not already configured support for TLS encryption using Certificates and the Certificate Manager you can configure Let's Encrypt very quickly using bash.
Code:
service scopserv stop
php -q /var/www/scopserv/server/scripts/letsencrypt.php
/var/www/scopserv/telephony/scripts/commit
service scopserv start
Installing Asterisk 20
scopserv_yum install asterisk20 -y
/var/www/scopserv/telephony/scripts/commit
service asterisk restart
service scopserv_fastagi restart
Installing the CODEC's (open source versions)
Execute the installation scripts:
/var/www/scopserv/telephony25/scripts/install_g729.sh
=================================================================
G.729 and G.723.1 codecs (x86_64) Linux binaries for Asterisk
DISCLAIMER: You might have to pay royalty fees to the G.729/723.1
patent holders for using their algorithm.
=================================================================
[Press ENTER to continue or CTRL-C to cancel]
Asterisk 18
------------
Downloading codec_g729.so...
Downloading codec_g723.so...
Asterisk 20
------------
Downloading codec_g729.so...
Downloading codec_g723.so...
Restart Asterisk to enable G.729 and G.723.1 codecs!
/var/www/scopserv/telephony25/scripts/install_opus.sh
=================================================================
Opus codec (x86_64) Linux binaries for Asterisk
=================================================================
[Press ENTER to continue or CTRL-C to cancel]
Asterisk 18
------------
Downloading...
Installing...
Asterisk 20
------------
Downloading...
Installing...
Restart Asterisk to enable Opus codecs!
service asterisk restart
Configure the SIP channel to support STUN
In this example stun.l.google.com:19302

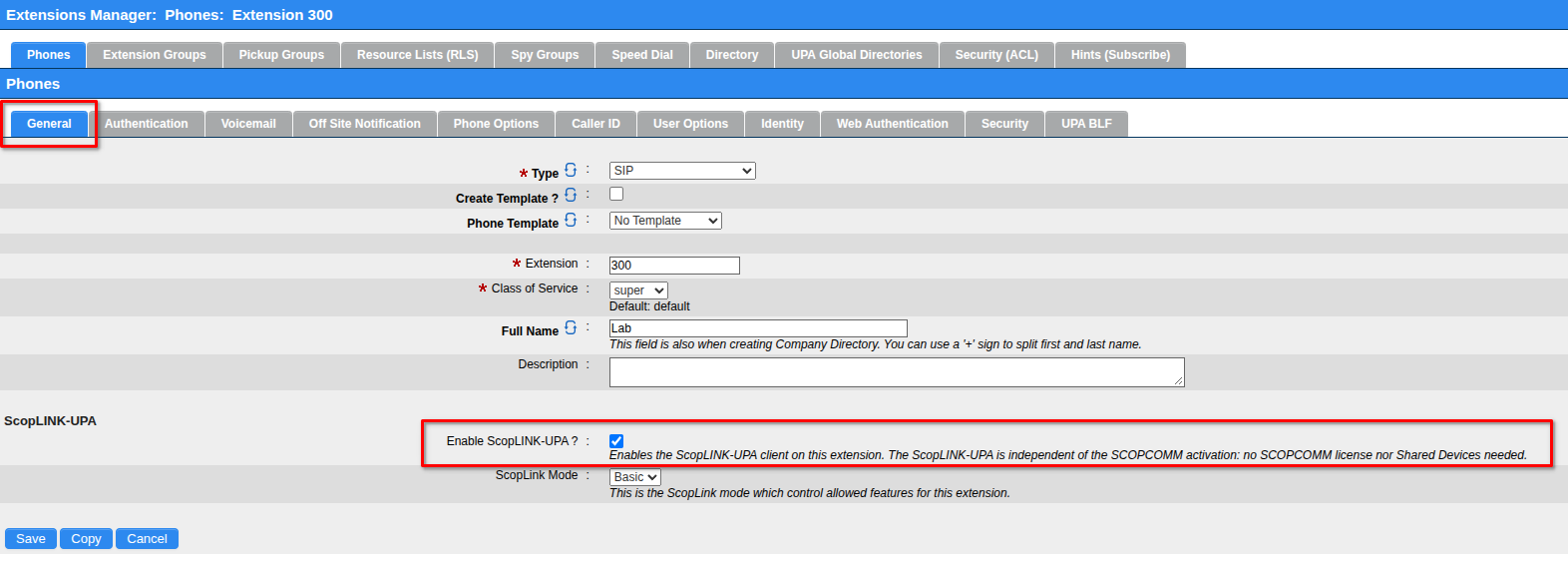

Configure the Extension
Commit your changes
Ensure each Extension is configured as needed and Commit your telephony changes.
