ScopTel RSA keys

RSA-Keys




Generating your ScopServ Server’s Private-Public Key Pair



 First you need to generate the key see the next figures for the procedure.

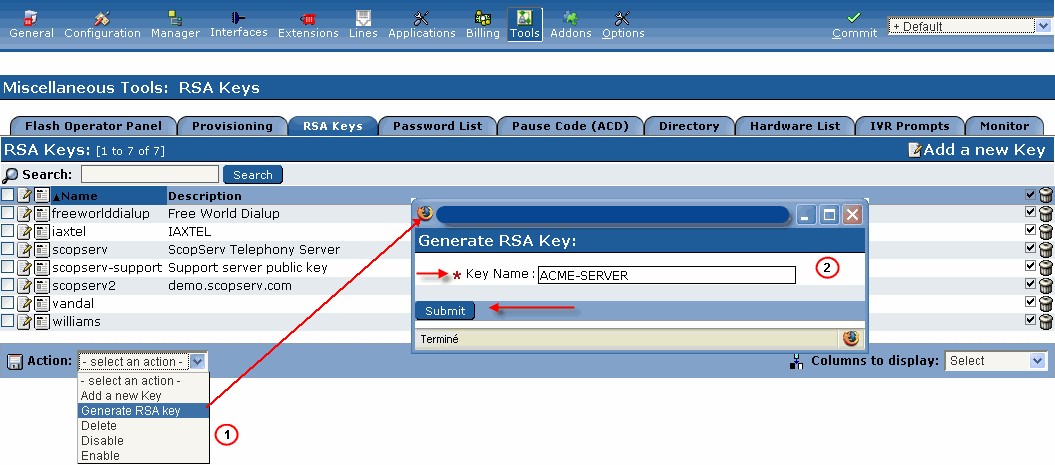

 Select Generate RSA Key from the Action Menu.




 Put the Key name you want then hit Submit and after the “key created message” please click on RSA Keys Tab to refresh and see the new key the in the display list.

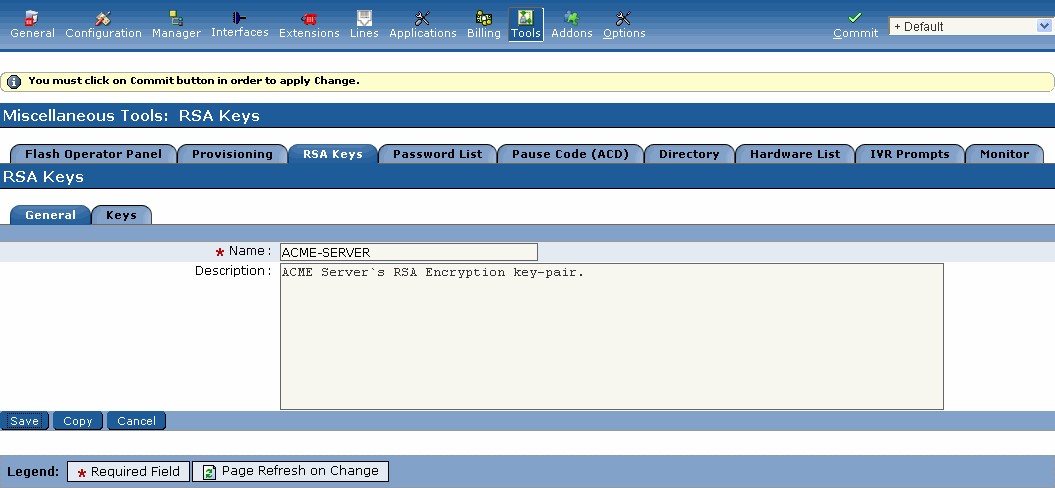

 Click the RSA Keys Tab to refresh the items in that tab.  Edit the new Item ACME-SERVER in this case.

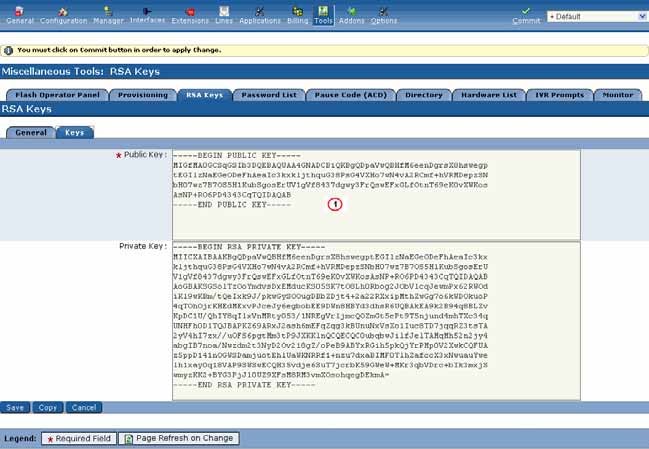

 Go to the next tab Keys.



 This is the key you will share with your peers.
