ScopTel setup Gmail or Office 365

Required Settings for Gmail or Office 365 SMTP Smart Relay

Required Settings for Gmail or Office 365 SMTP Smart Relay

Gmail and Office 365 each require unique settings for Smart Relay Configuration.  This document describes each.

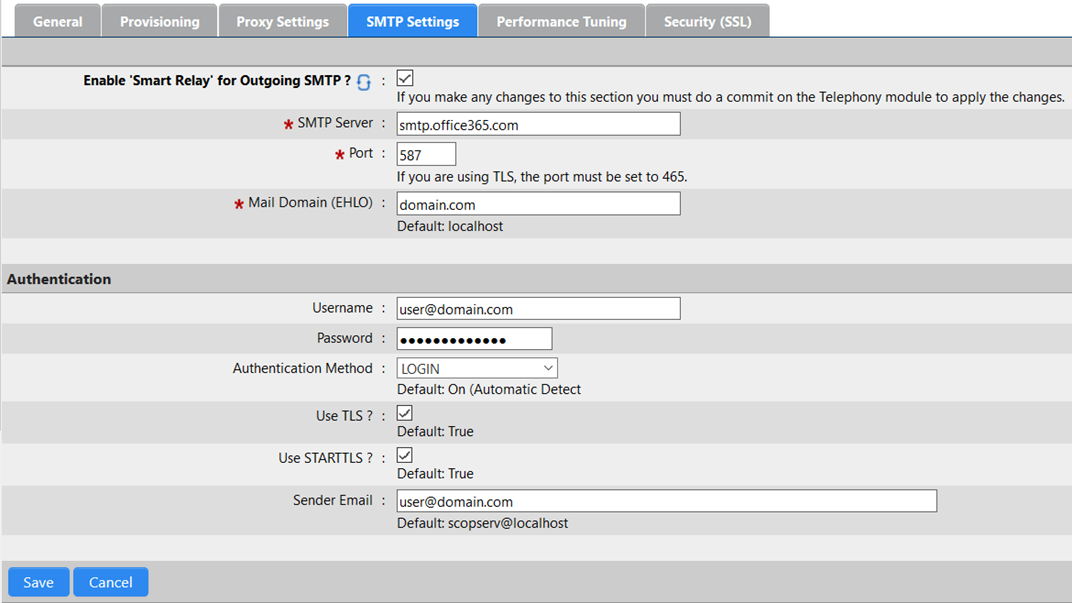

Office 365 Settings

•Replace Username and Domain settings with the information needed by Office 365 to authenticate.
•Port number is 587
•Authentication Method is LOGIN
•Use TLS is True
•Use STARTTLS is True

Also see:




Gmail Settings

•Replace Username and Domain settings with the information needed by Gmail to authenticate.
•Port number is 465
•Authentication Method is PLAIN
•Use TLS is True
•Use STARTTLS is False




You must configure an App Password to use Gmail as an SMTP Relay server. See:

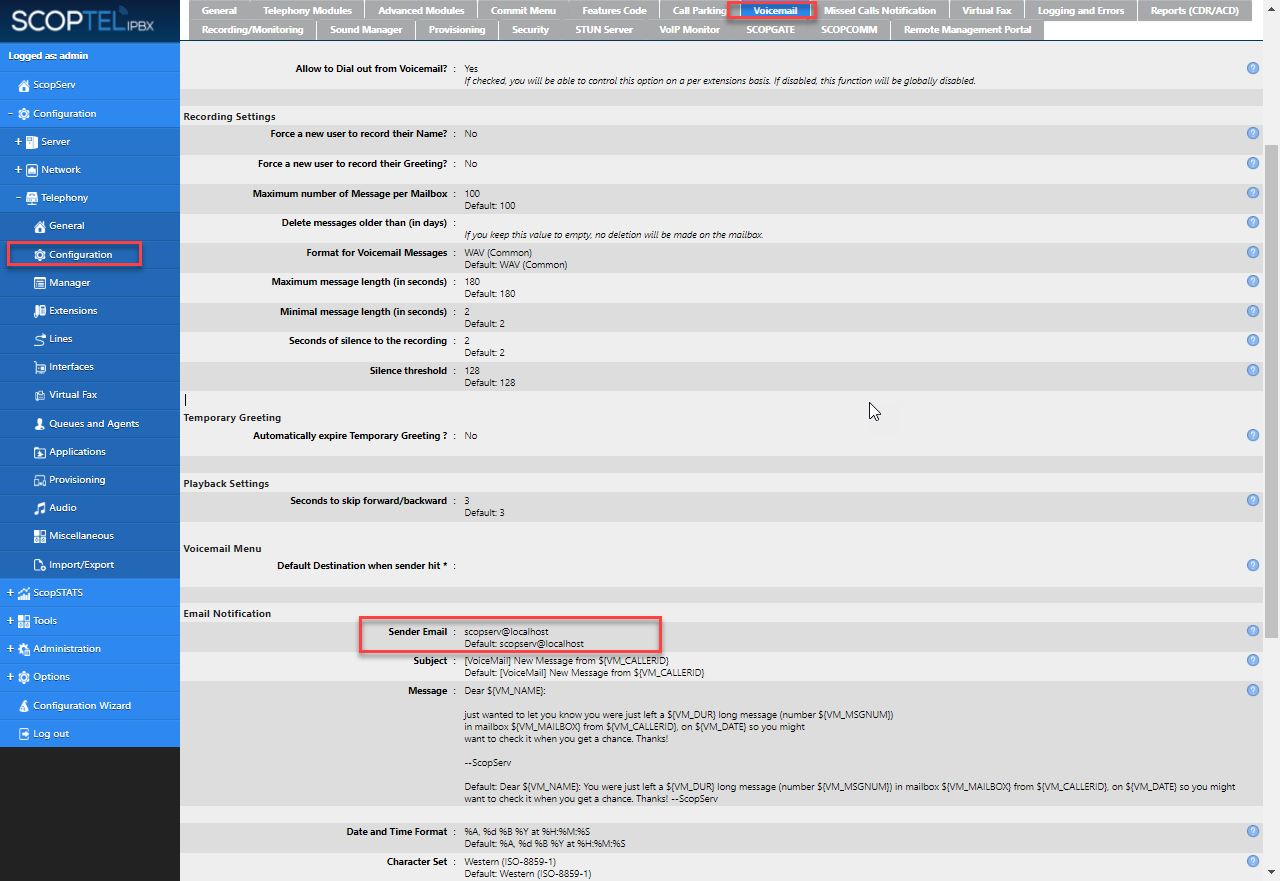

Voicemail Sender Email Address

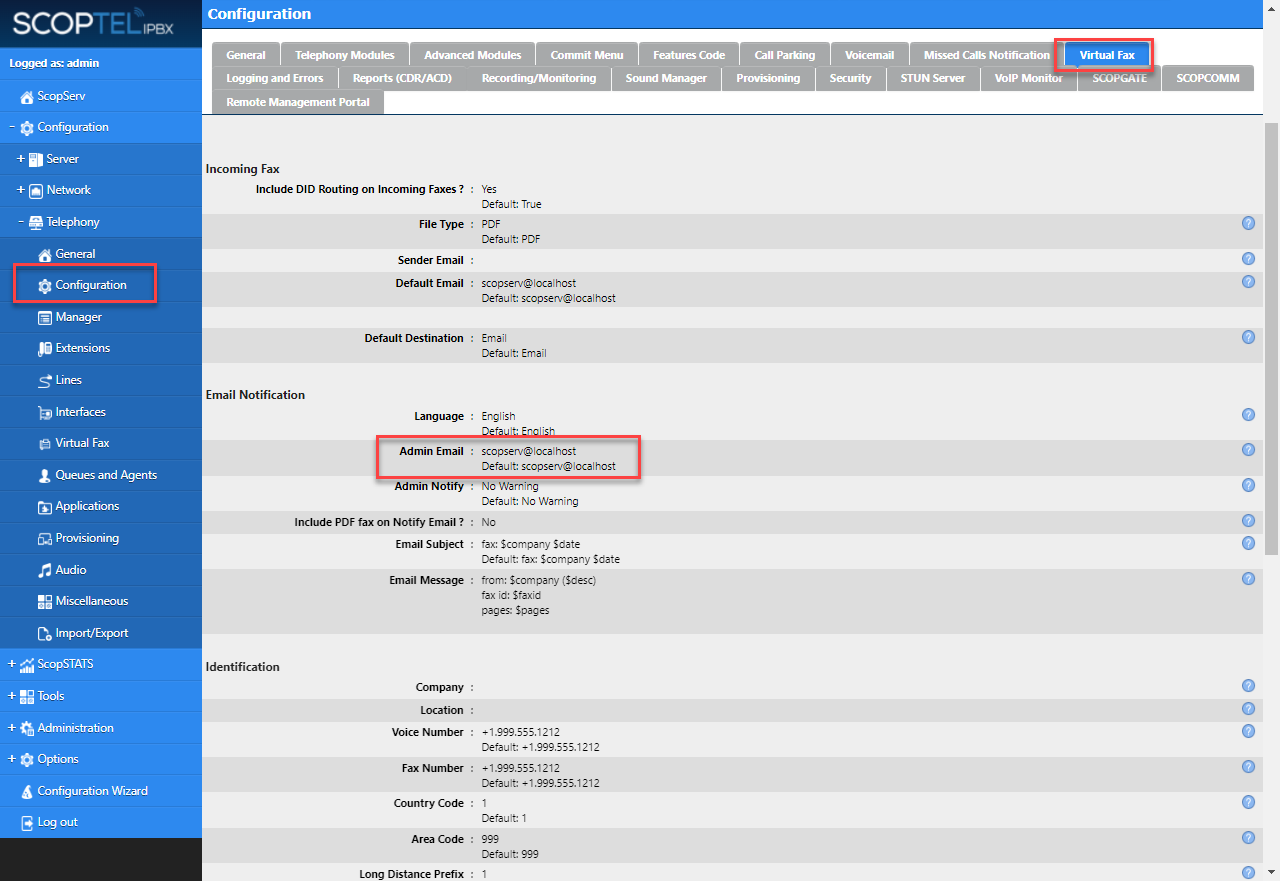

Virtual Fax Admin Email Address





Telephony Commit


Once you have configured and verified SMTP Relay settings are functional you must do a Telephony Commit.
