Scoptel integration with Microsoft

Integrating Extensions With Microsoft Exchange and Office365

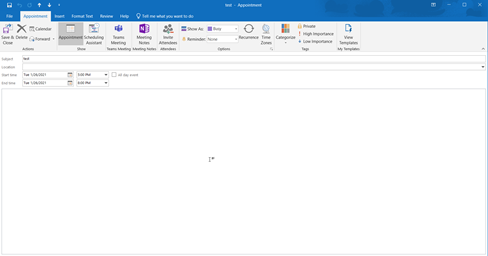

In Microsoft Outlook you can use the Calendar to set your busy status by creating a Calendar event.
It is possible to integrate your ScopTEL extension with your Calendar so that when your Calendar makes you busy you can set a busy destination for your extension.
The integration is configured per extension

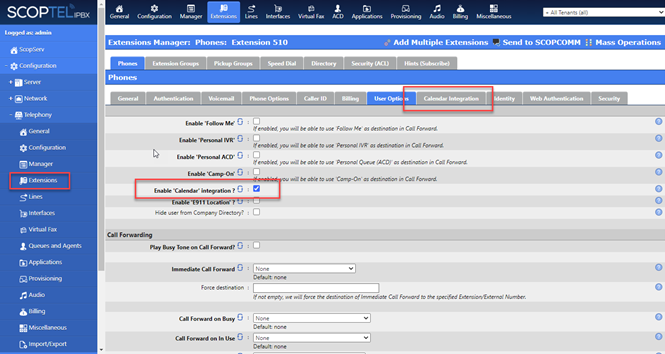

Extensions|User Options|Enable 'Calendar' integration

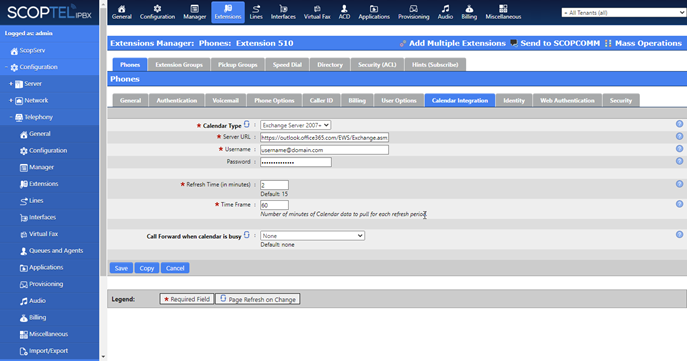

Calendar Type Exchange Server 2007+ should be selected using the drop list selector
If you are connecting to a local Exchange server then the url should be in this syntax: https://exchange.domain.local/EWS/exchange.asmx
If you are connecting to Office 365 then the syntax will always be: https://outlook.office365.com/EWS/Exchange.asmx
Enter the User Credentials

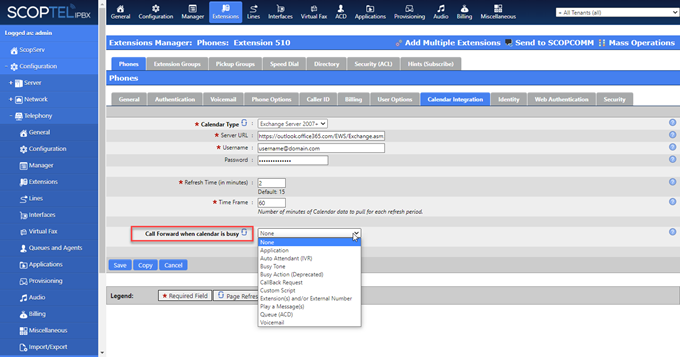

Configuring Call Forward when calendar is busy





Usage



[Jan 26 18:19:26]     -- AGI Script Executing Application: (NoOp) Options: (CALENDAR IS BUSY)

[Jan 26 18:19:26]  agi://127.0.0.1:4573/dial: Doing the action notify

[Jan 26 18:19:26]  agi://127.0.0.1:4573/dial: Doing the action forward

[Jan 26 18:19:26]  agi://127.0.0.1:4573/dial: Forward destination: busy [60]

[Jan 26 18:19:26]  agi://127.0.0.1:4573/dial: Doing the action busy

[Jan 26 18:19:26]  agi://127.0.0.1:4573/dial: Variable 'INCOMINGLINE' result is not defined!!!

[Jan 26 18:19:26]     -- <SIP/davidbrillert410-00003bbf>AGI Script agi://127.0.0.1:4573/dial completed, returning 0

[Jan 26 18:19:26]     -- Executing [s@macro-scopserv-dial:23] ExecIf("SIP/davidbrillert410-00003bbf", "1?Busy(60)") in new stack
