How to Configure the ScopTEL DNS Server

How to Configure the ScopTEL DNS Server

GUI|Network Configuration

Set the FQDN (Fully Qualified Host Name)




GUI|Network Interfaces

Configure each network interface using the GUI
NOTE: GUI configuration will always overwrite any configuration made by the Linux console!




Save your changes and Commit




Network|DNS Server

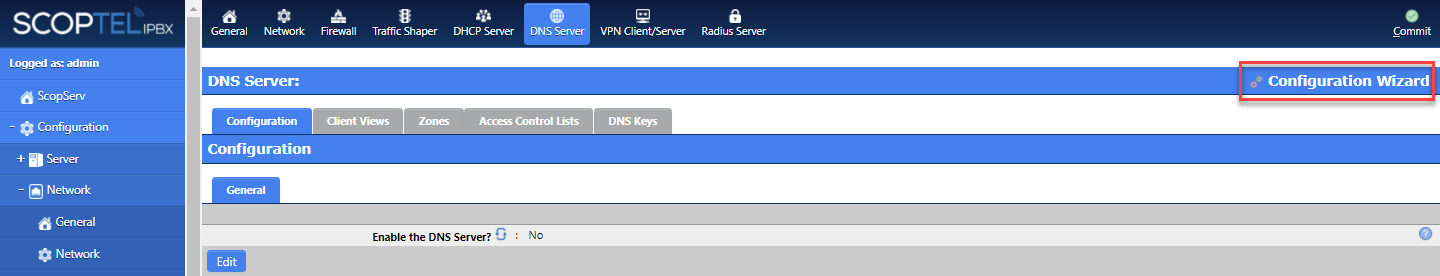

From this page click on the Configuration Wizard

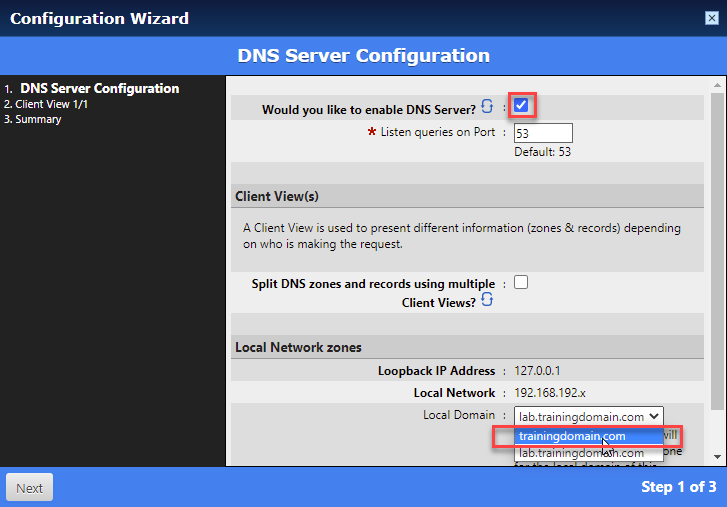

Click on Enable DNS Server
From the drop list select the domain portion of the FQDN, do not include the hostname portion.
Click next.

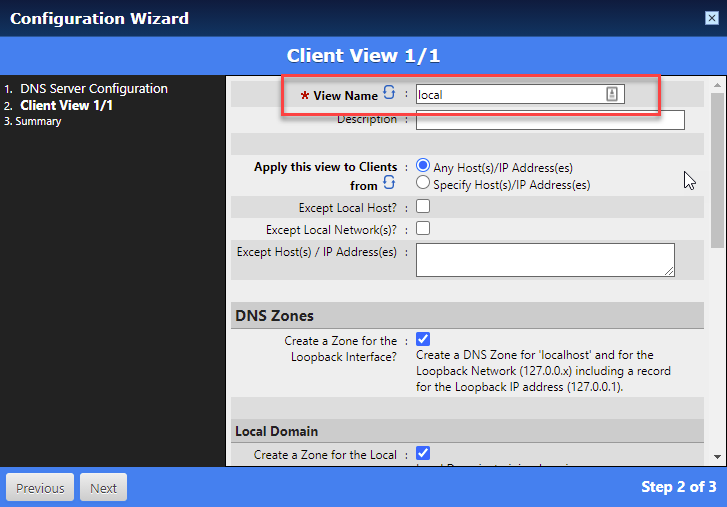

Enter some descriptive text into the View Name.
Click Next




Scroll down to Apply Changes.
Click Finish and close any additional popup windows.




Client View|Configuring Forwarding Servers

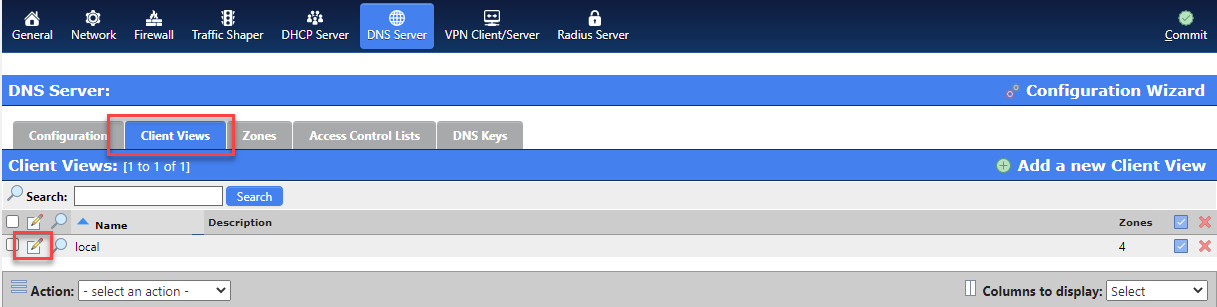

Click on the Client Views tab and edit the view

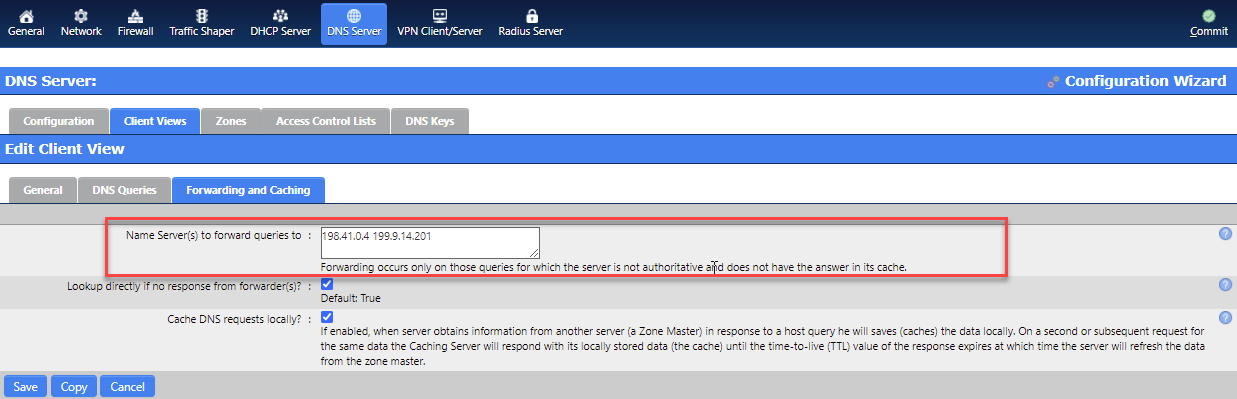

Click on the Forwarding and Caching tab to add a forwarder address(es).
Separate each forwarder address with a space.
This is necessary to forward DNS requests which cannot be resolved by local DNS A records.
In this example two of the Internet's root hint servers 198.41.0.4 199.9.14.201 are configured but can be substituted for any DNS server capable of servicing any public DNS requests.
Click Save when done and Commit your network changes with the Commit button.
Once Done click on the General tab.




Network|General|Bootup Services Manager

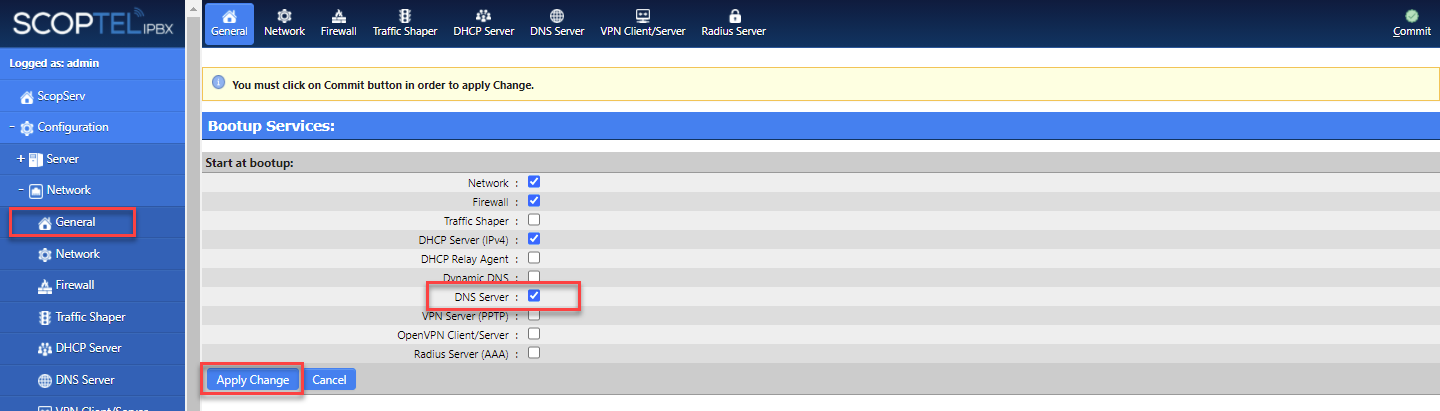

Edit the General tab to bring up the Bootup Services Manager.
Select the DNS Server from the available services.
Click on Apply Change




The DNS Server may appear Stopped.
Click on Start Service.
If the DNS Server appears running then click Restart the DNS Server to make sure the service has reloaded the new configuration.





The DNS Server is now running.

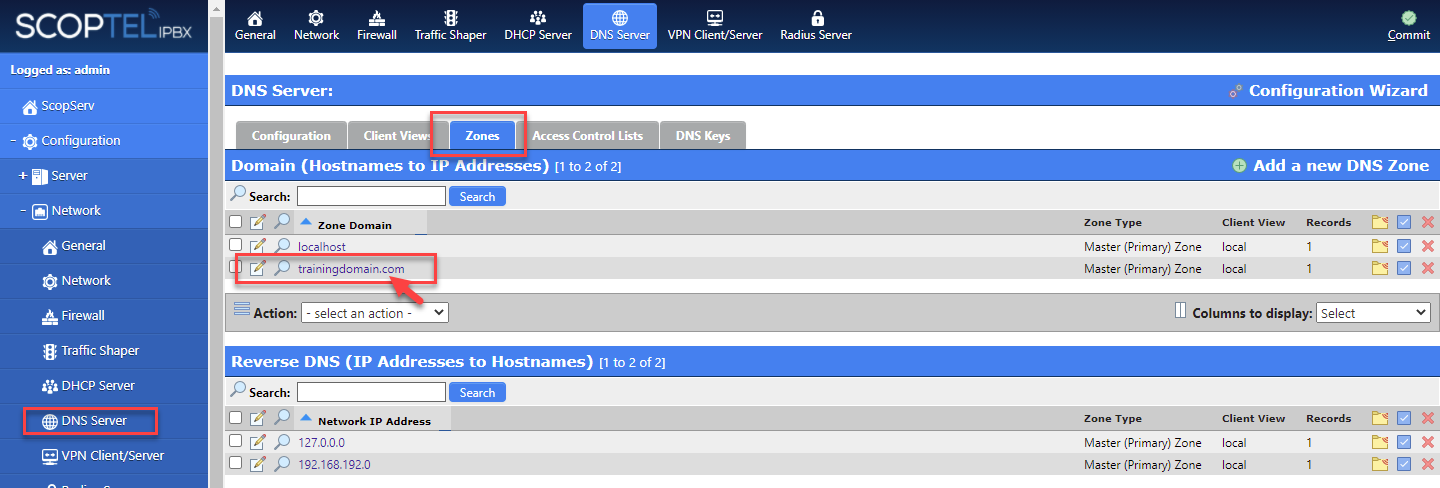

If you need to add any local DNS records then click on DNS Server and click on the Zones tab.
Locate the new zone and click on the text/url to add records.




Adding Custom Zone Records

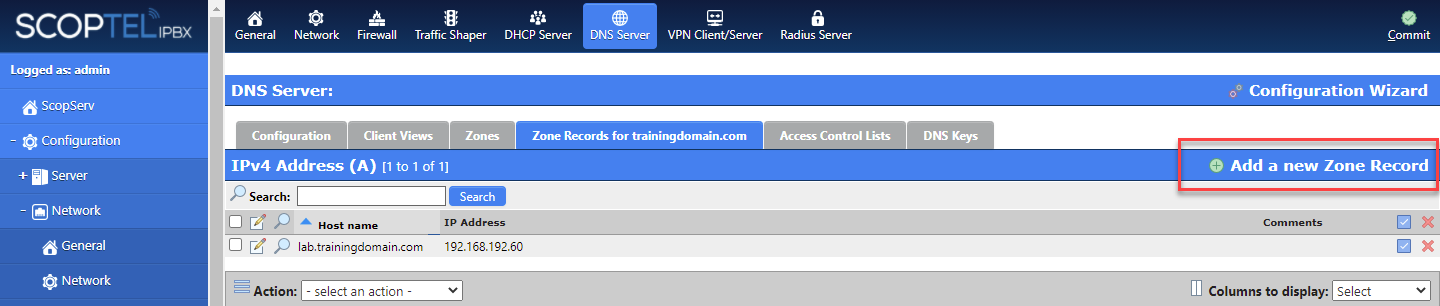

Click Add a new Zone Record

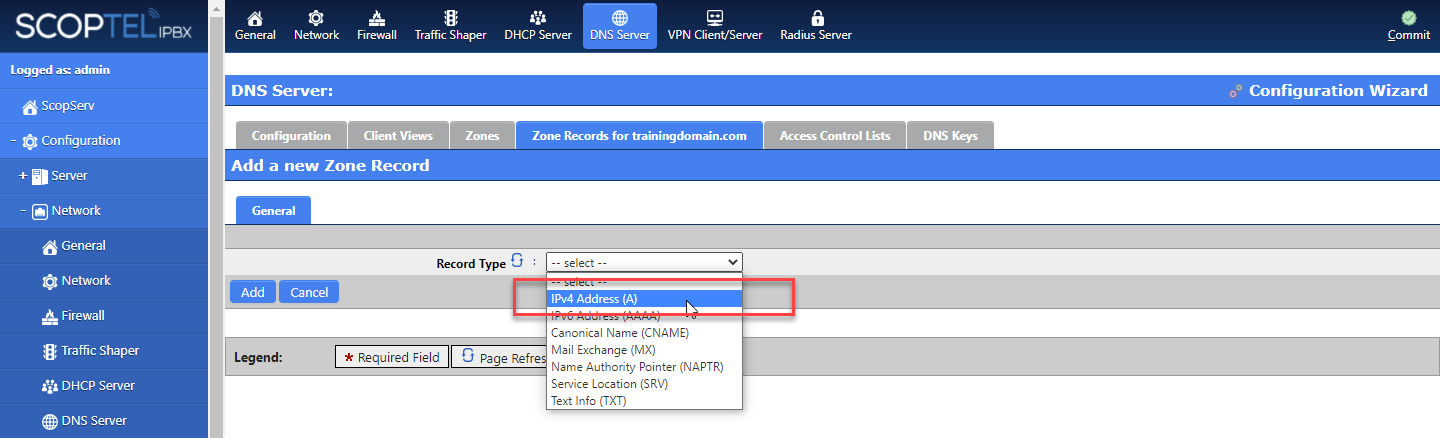

In this example the Record Type selection will be IPv4 Address (A)

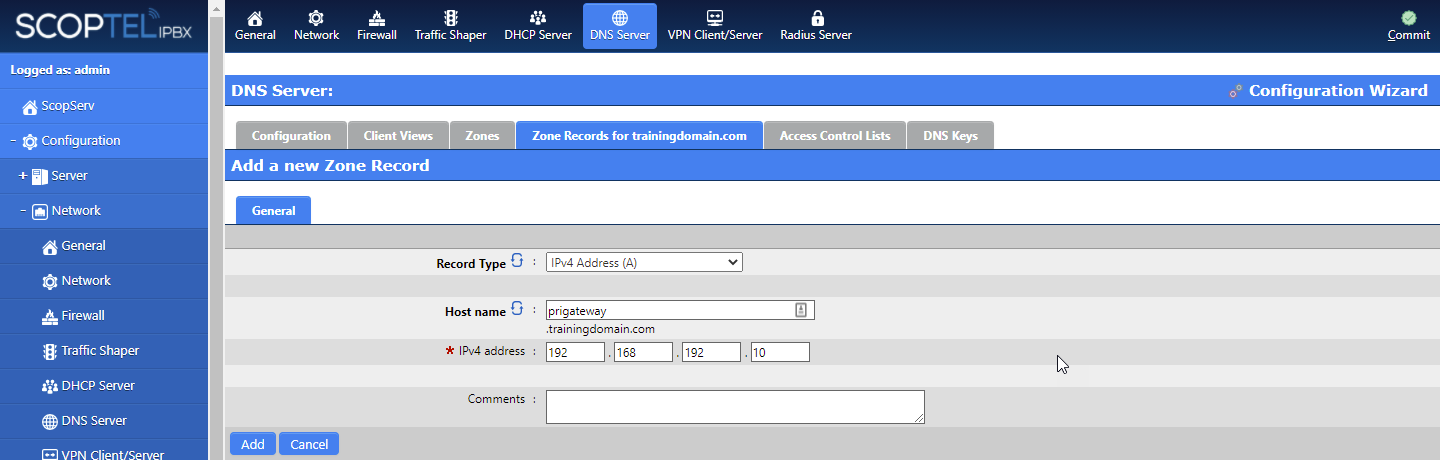

Enter the Host name for this local DNS A record.
In this example a hostname for a prigateway is added so that any DNS client using this DNS server can use prigateway.trainingdomain.com as a FQDN instead of an IP Address.
Click on the Add button when done.
Commit your network changes and the use the Network|General|Services Manager to restart the DNS Server with the new A record(s).




Add any additional records as necessary.
Whenever adding a new record be certain to Commit Network changes and use the Network|Services Manager to restart the DNS Server to activate those changes.
