ScopTel FOP2

FOP2-Install

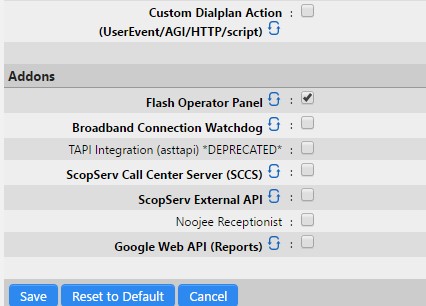

Enable the Flash Operator Panel

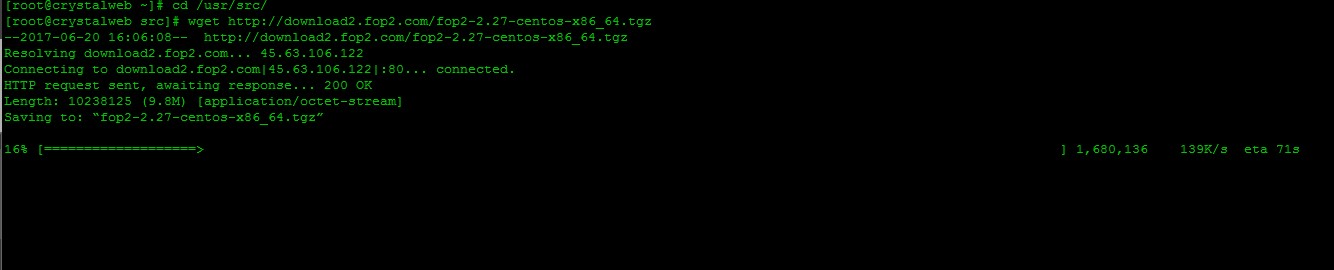

Once enabled, download and install the software using the commands below:
cd /usr/src/
tar -zxvf fop2-2.27-centos-x86_64.tgz
cd fop2

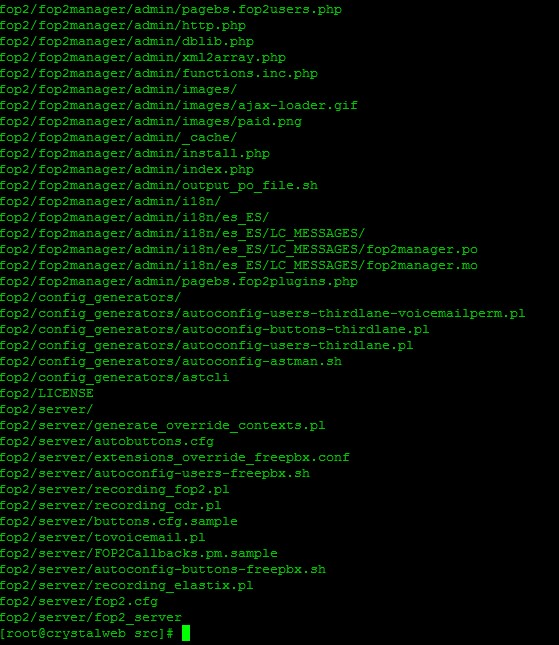

 make install




Test connection from terminal using the below command:

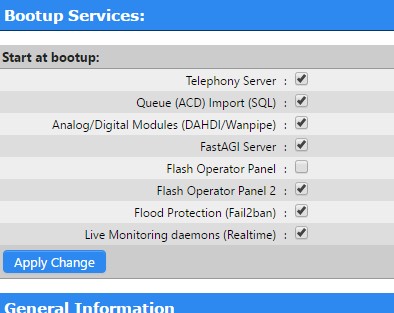

Once installed, go to Configuration   Telephony and enabled the service.
Once applied, navigate to Configuration   Telephony




Miscellaneous   Flash Operator Panel

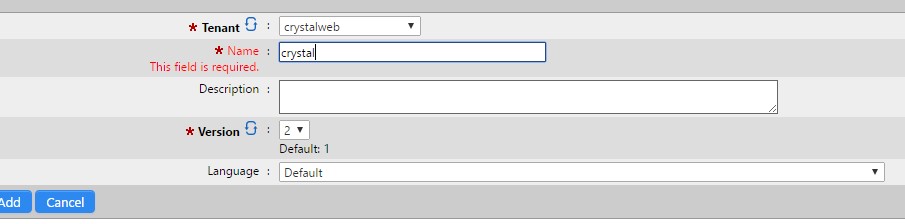

Add a panel, select tenant and Version 2 and then add a name.

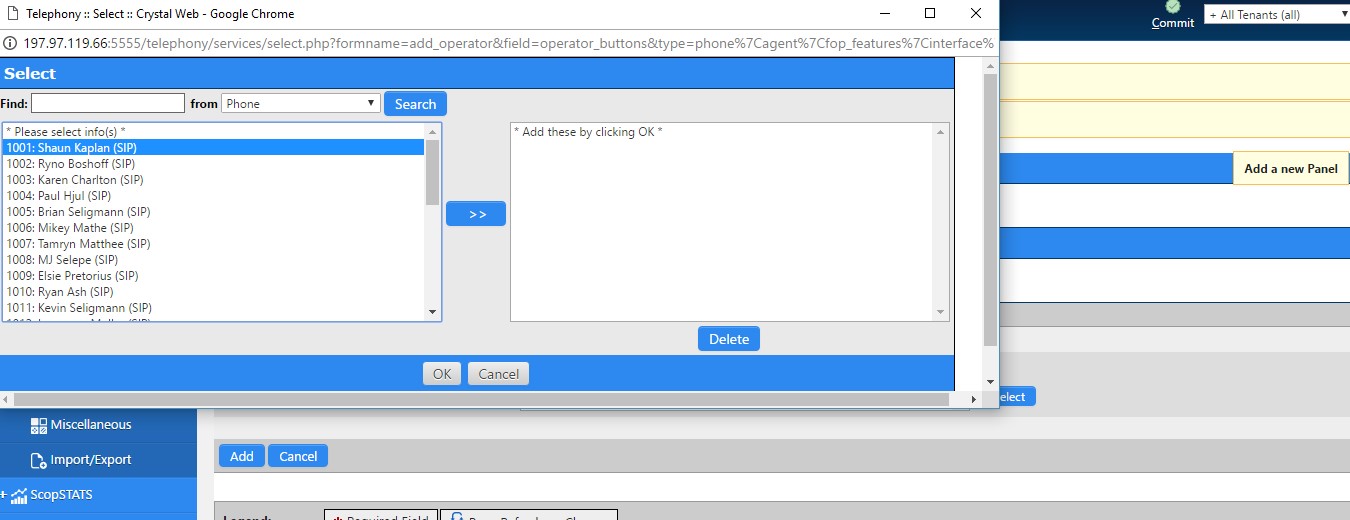

Navigate to the buttons and select the extensions you require.




Once added, then commit and restart the httpd service and the fop2 service.

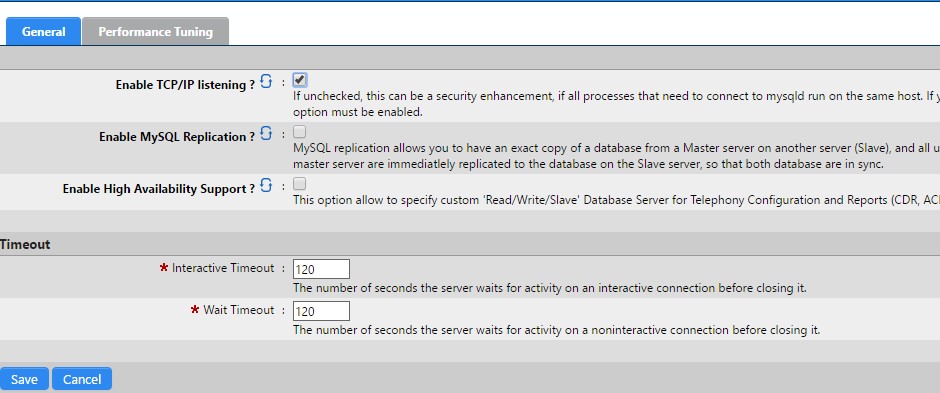

Enable listening on the Mysql server.

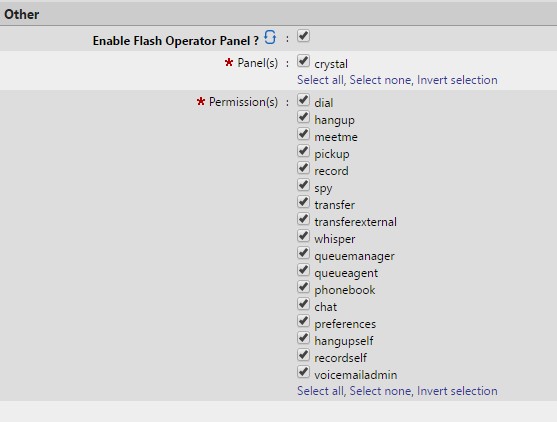

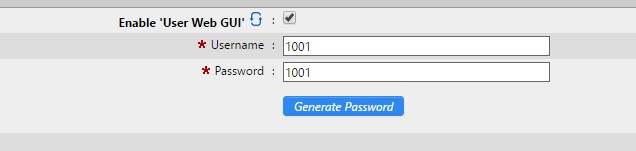

Enter the username and password that is assigned to the extension.

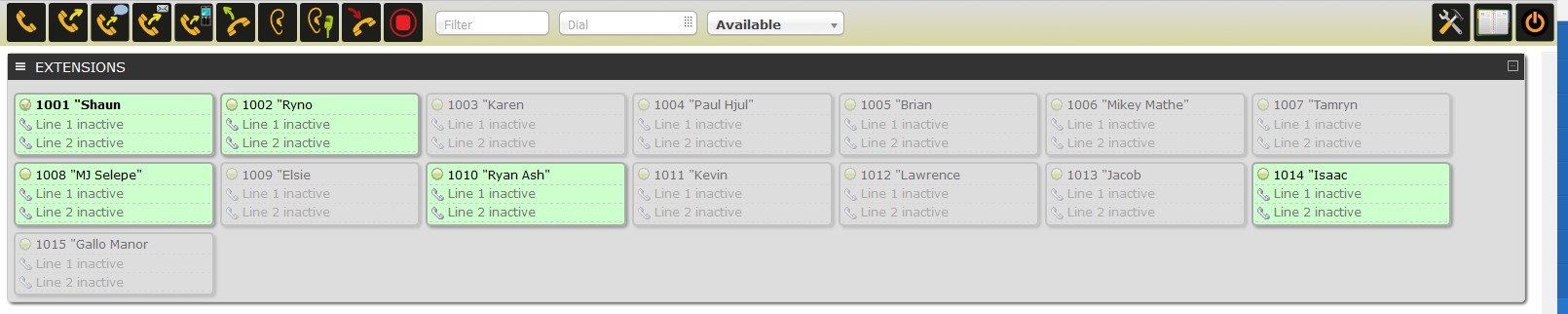

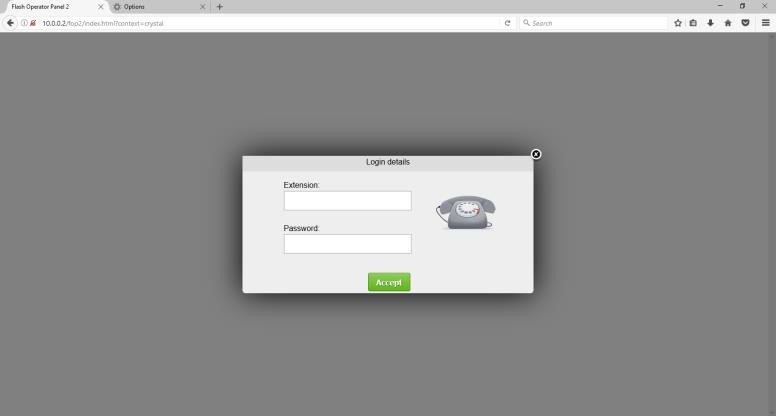

Connect to the FOP2 using (IP of server)
/fop2/index.html?context=(FOP2 name)
